Warning: This Part Requires General Mechanical Abilities If you are not confident in your abilities Please have this product installed at a Local Off-Road Shop .
Tools Required:
Safety Glasses, Gloves, Wrench set, Socket Set, Torque wrench, , Tie rod separator, Jack, Jack stands(Tall and short) , Wheel chock,, Cutting tool (sawzall , cutoff wheel, plasma cutter ect...) Welder and welding ppe.
Step 1:
Take an inventory of your parts, If you are missing any parts Please contact Artec Industries Immediately @ (855) 278-3299 M-F 8:30am-5pm MST if it is after those hours please email us pictures of what you received , along with product labels on the box and packing slip at Sales@artecindustries.com
Step 2:
Place wheel chocks at the rear wheels, Break free the lug nuts on the front wheels. Use a jack to raise the front of the vehicle and set the front axle on jack stands . then remove the wheels from the vehicle .
Step 3:
Remove the steering stabilizer from the axle, Now remove the tie rod and draglink from the Steering knuckles and pitman arm, Remove the sway bar end links form the axle. With the steering removed Cut off the Oem Track bar and clean the area of any rust, dirt or paint to prep the axle for the new Artec track bar mount.
Step 4:

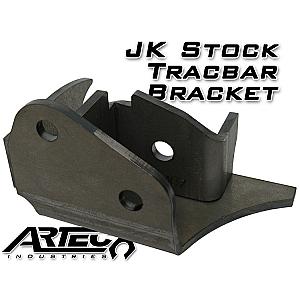

Place part number 2 tab into key way on part number 1 slip your track bar between parts # 1 & 2 using run a bolt and nut through the holes on the bracket and track bar to set the mounting width of the track bar tack weld Part 2 onto part 1. Remove the track bar from the bracket and fully weld Part 2 to Part number 1
Step 5:

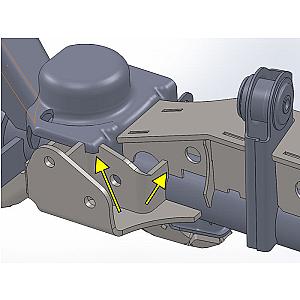

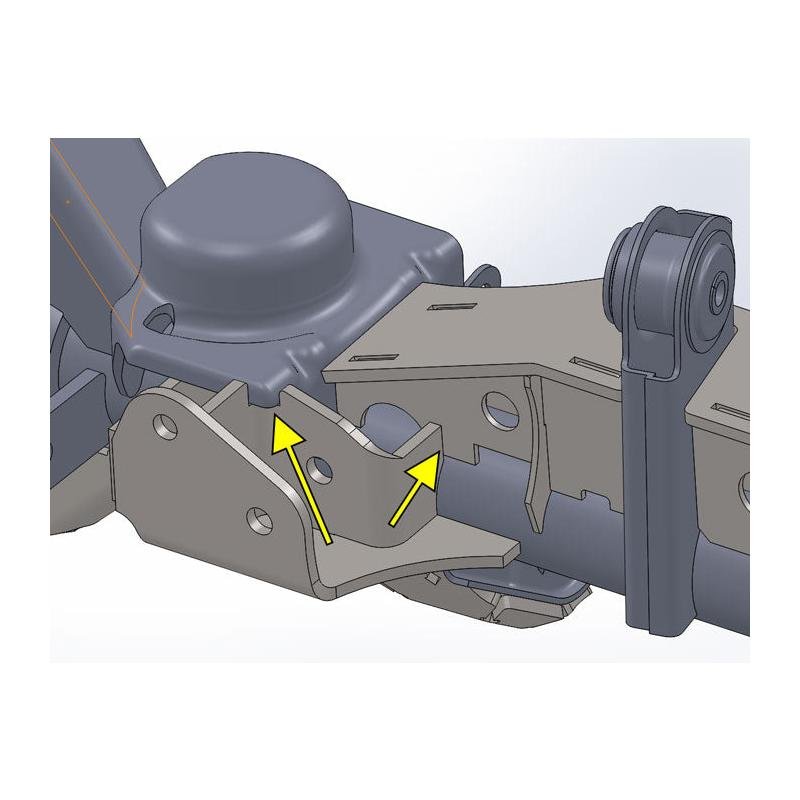

Line the corner of the coil bucket up with the slot cut out on part number 2 and set the corner of the coil bucket into the relief on part 2 and tack weld the bracket to the axle. Once the bracket is tacked into place fully weld the bracket into position.
Step 6:
Install the track bar back into the Jeep, Then reinstall the sway bar end links, Install the Tie rod and draglink then install the stabilizer. then the wheels (do not fully tighten lug nuts yet )
Step 7:
Using a jack raise the Jeep and remove the jack stands from under the axle . Lower the vehicle to the ground and torque all of the bolts to their factory specs . Take the Jeep to have an alignment performed to make sure the alignment is in spec to prevent abnormal tire wear.
Install videos are coming soon.
Mangled my front LCA brackets ARTEC was recommended by metalcloak. Great fix super strong cant wait to beat them up if I need to. Very nice design of slider portion in case I take a huge hit.
Part Im sure is wonderful. Im writing a review on the company policy on returns. Shipping costs were NOT refunded upon return. (Im sure this is written in fine print somewhere) With what I had to pay to send part back I should have just kept it. Total shipping coming returning cost more than the original cost of the part. Disappointing to say the least.
Real heavy duty . Mine didnt fit with the coil bucket like it shows in the picture it works great.
A — Staff (Artec Team): We do not offer any RHD trackbar brackets .
A — Staff (Artec Team): We do not have any text instructions written for the bracket just an image of where it goes can be found here : https://www.artecindustries.com/assets/images/truss/JK/stocktracbar1.jpg , We can help guide you through install via phone or email if needed .
A — Staff (Artec Team): The Jk4407 will also work on the JK dana 30 axle
A — Staff (Artec Team): In some cases you will need to flip the disconnect pin on the axle mount to the outside side to clear the bracket so you are able to disconnect
A — Staff (Artec Team): This is a stock replacement bracket , It will work with a stock trackbar and after market trackbars .
A — Staff (Artec Team): We are working on RHD versions and will be releasing them soon.
