Warning: This Part Requires General Mechanical Abilities If you are not confident in your abilities Please have this product installed at a Local Off-Road Shop .
Tools Required:
Safety Glasses, Gloves, Wrench set, Socket Set, Torque wrench, , Tie rod separator, Jack, Jack stands(Tall and short) , Wheel chock,, Cutting tool (sawzall , cutoff wheel, plasma cutter ect...) Welder and welding ppe.
Step 1:
Take an inventory of your parts, If you are missing any parts Please contact Artec Industries Immediately @ (855) 278-3299 M-F 8:30am-5pm MST if it is after those hours please email us pictures of what you received , along with product labels on the box and packing slip at Sales@artecindustries.com
Step 2:
Place wheel chocks at the rear wheels, Break free the lug nuts on the front wheels. Use a jack to raise the front of the vehicle and set the front axle on jack stands . then remove the wheels from the vehicle .
Step 3:
Remove the steering stabilizer from the axle, Now remove the tie rod and draglink from the Steering knuckles and pitman arm, Remove the sway bar end links form the axle. With the steering removed Cut off the Oem Track bar and clean the area of any rust, dirt or paint to prep the axle for the new Artec track bar mount.
Step 4:
Place part number 2 tab into key way on part number 1 slip your track bar between parts # 1 & 2 using run a bolt and nut through the holes on the bracket and track bar to set the mounting width of the track bar tack weld Part 2 onto part 1. Remove the track bar from the bracket and fully weld Part 2 to Part number 1
Step 5:

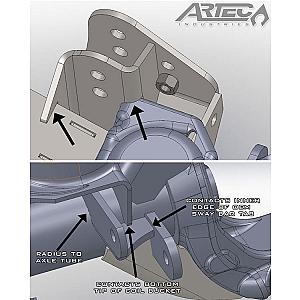

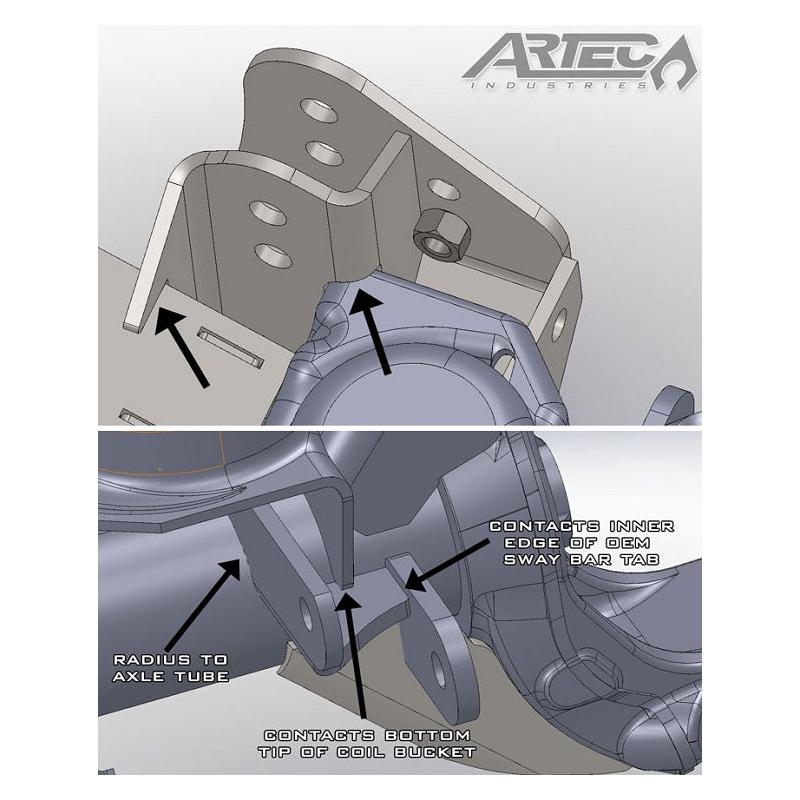

Line the corner of the coil bucket up with the slot cut out on part number 2 and set the corner of the coil bucket into the relief on part 2 and tack weld the bracket to the axle. Once the bracket is tacked into place fully weld the bracket into position.
Step 6: Take part 3 with the pointed end towards the top and slide it up until it contacts the under side of the coil bucket and slide it towards the end of the axle so the side of part 3 will contact the oem stabilizer tab. Weld it into place .
Step 7:
Install the track bar back into the Jeep, Then reinstall the sway bar end links, Install the Tie rod and draglink then install the stabilizer. then the wheels (do not fully tighten lug nuts yet )
Step 8:
Using a jack raise the Jeep and remove the jack stands from under the axle . Lower the vehicle to the ground and torque all of the bolts to their factory specs . Take the Jeep to have an alignment performed to make sure the alignment is in spec to prevent abnormal tire wear.
After 50 miles Check all bolts for tightness and tighten if needed .
Install videos are coming soon.
Excellent product made from high‑quality steel that works exactly as advertised. Artec’s customer service was outstanding as well. After placing my order, I called with some concerns, thinking I might have ordered the wrong bracket. Connor took the time to patiently explain that the bracket was correct and would work perfectly with my setup. Great product and great support.
I installed an Ultimate Dana 44 but oddly its raised TB mount isnt raised enough for the 3 change caused by a drag link flip. Both the TB and the Drag Link need to be parallel to prevent bump steer. The Artec JK Heavy Duty Raised Trackbar Braket was the solution. It raised my mount the 3 to match.
I recently installed this raised track bar bracket when I did a drag ling flip kit on my Jeep. This comes in 3 pieces and at first I was confused about the 3rd small piece. I called ARTEC and they told me it was for the driver side sway bar end link. I had no idea that I was going to raise my sway bar end links in this process. Turned out to be great for me as I got an extra 2 inches of flex out of this. The bracket has holes for the track bar steering stabalizer and the sway bar end link. Super thick and well made. Easy to weld in. I love it.
Wanted to run a high steer and this bracket was the perfect solution in keeping my geometry correct. Fit perfectly welded in great LOVE IT Definitely not a part that I need to be concerned about on the trail.
Order this for my new trackbar and Im super happy with it. The fit and finish was amazing and its super beefy. Another amazing Artec product
Fit perfectly no problems at all. very happy with track bar mount. very happy with how these components improve the handling and drivability of my JKU .. Thank You Keep up what your doing ..
A — Staff (Artec Team): the raised trackbar bracket will work for you if you have a draglink flip or an extension bracket on your existing trackbar mount . if you have neither of those i would recommend our stock replacement trackbar bracket .
A — Staff (Artec Team): Yes this bracket will work on both the d44 and d30 axles
A — Staff (Artec Team): This bracket can be used with or with out the truss .
A — Staff (Artec Team): The JK4406 Raised trackbar bracket works with the first generation of our truss's or standalone without a truss . The Apex Raised bracket JK4452 will work with our Current Generation Apex Truss's or stand alone without a truss .
A — Staff (Artec Team): refer to this image http://www.artecindustries.com/assets/images/truss/JK/tracbar-sway.jpg , it will show you where to locate the bracket and key it off of the coil bucket
A — Staff (Artec Team): we have not tested this with RHD Jeeps so we can not verify fitment
A — Staff (Artec Team): This is designed to work with the factory axle and keys off of our JK Front Truss, but you can make it work with a little bit of trimming on that axle.
A — Staff (Artec Team): The main reason to select the raised trackbar bracket over the factory height bracket is a Draglink Flip. Just lifting the Jeep is not a reason to use the raised mount, but if you flip the draglink then you must raise the trackbar to keep steering geometry in the same plane.
A — Staff (Artec Team): No, you should have an adjustable trackbar with this size of lift.
A — Staff (Artec Team): The factory bracket needs to be removed for this to work. Also, the raised version is to be used for Jeeps with a Draglink Flip to correct steering geometry. If you are not running a Draglink Flip, then select the factory height bracket.
