Warning:
Installing this product requires Welding and Fabrication skills, If you
are not confident in your abilities to complete this task please have this
installed at an qualified off-road shop .
Tools required:
Safety glasses, Socket Set, Wrench Set, Cutting tools ( Example : sawzall, grinder,
plasma cutter, cutting torch, ) Ball joint press Welder,
Jack, Jack stands, Wheel Chocks.
Step 1:
Please take inventory of parts, Call Artec Industries Immediately if you have incorrect or
missing components @ (855) 278-3299 M-F 8am-5pm MST If outside of those hours please send us an
Email at Sales@ArtecIndustries.com
Step 2:
Remove the steering from the knuckles then remove the
knuckles from the axle .
Step 3:
Drill out the knuckle bolt hole to accept a 3/4"
bolt. and remove your ball joints from
the knuckle
Step 4:
Clean and prep knuckle surface of all dirt, Grease, Paint
and other debris to ensure the surface is ready for welding
Step 5:

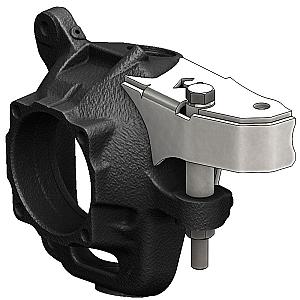

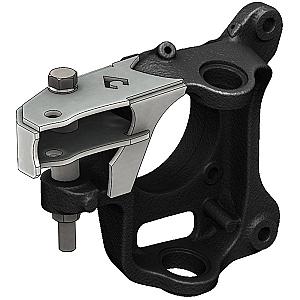

Heat the knuckle to 400 degrees once knuckle is up to temperature Lay the knuckle flat on hub side down rest the Hs6153-3 flat against the knuckle
with the round cutout at the bottom around the steering stop stanchion post .
Step 6:
Slip the Hs6153-1 onto the knuckle ( There is a laser etch
mark at the top of the Hs6153-1 & -4
This may need to be trimmed due to casting variations throughout the
production years ) . Now Slip the HS6153-2 into the center of the HS6153-1 and it should key into
the groove on the hs6152-3 . Now take your knuckle bolt kit and run it
through the large round holes and bolt into place you should have some of the sleeve
sticking out of the top of the Hs6153 bracket .
Step 7:

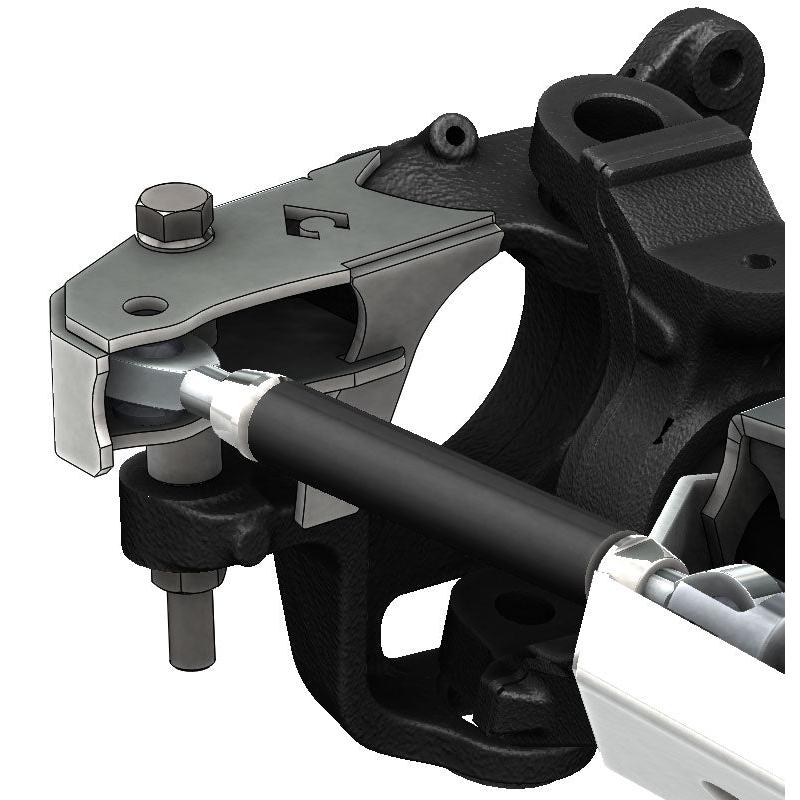

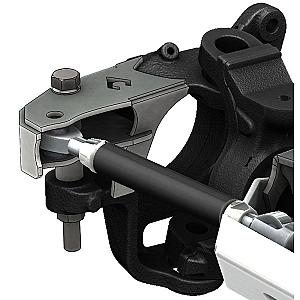

Take your heim joints and misalignment spacers and bolt them
into position to set your joint spacing
and tack weld the HS6153 parts together and remove the heim joints.
Step 8:
Once the heim joints are removed you can fully weld all of
the parts together. Post heat and peen
the welds to ensure they do not crack
and wrap the parts in a welding blanket to cool slowly overnight.
Step 9:
Prime paint or powder coat the knuckles to finish the
surfaces
Step 10:
Press in new ball joints
and install onto the axle.
Step 11:
Repeat this process for the other side .
Install videos are coming soon.
This weld on kit is junk do not waste your money there is no instructions for one it does not line up have to modify it to much to make it work huge gaps recommend buying from another company
This is my first axle modification. It was not clear to me how the main tube was supposed to be mounted through to steering arm. I was able to get a hold of someone on artecs Facebook page and they sent me the picture below. It shows the main tube at an angle that none of the other pictures on the website show. Cleared everything up and I had them welded on fairly quickly.
A — Staff (Artec Team): We have not tested that wheel, but have found our high steer arms require 17" wheels, so it would be close but we cannot confirm. Thanks!
A — Staff (Artec Team): Yes a 17" or larger wheel with 4.75" backspacing is about as much as you can run
A — Staff (Artec Team): The HS6152&HS6153 will only work for a 1999-2004. For a 2005+ you will want a Hs6150 or hs6151
A — Staff (Artec Team): We currently do not have a video or instructions. The knuckle is cast steel so it can be MIG welded as normal. We suggest preheating and post heating the knuckle. Every casting is different so it may require some minor modifications to either the knuckle or arm to fit.
A — Staff (Artec Team): No, This will only work on the 1999-2004 Super-duty axles .
