Warning:  Installing this product requires Welding and Fabrication skills, If you are not confident in your abilities to complete this task please have this installed at an qualified off-road shop .

 Tools required:  Safety glasses, Socket Set, Wrench Set, Torque wrench, Angle Finder,  Cutting tools ( Example : sawzall, grinder, plasma cutter, cutting torch, )  Welder,  Jack, Jack stands, Wheel Chocks.

 Step 1:

Please take inventory of parts,  Call Artec Industries Immediately if you have incorrect or missing components @ (855) 278-3299 M-F 8am-5pm MST  If outside of those hours please send us an Email at Sales@ArtecIndustries.com

Step 2:

Loosen your lug nuts on the rear wheels (do not fully remove them)

 Step 3:

Place wheel chocks at front wheel of the Jeep,  Jack up the rear of the Jeep and Securely  place the Frame onto Tall Jack stands  and axle onto shorter Jack stands .

 Step 4:

Remove the Lug nuts and wheels  from vehicle. Completely remove the lower control arm from the vehicle (We recommend only working on 1 side of the vehicle at a time.)

Step 5:

Cut off your lower control arm mount from the axle and grind the area smooth to prep for welding.

Step 6:

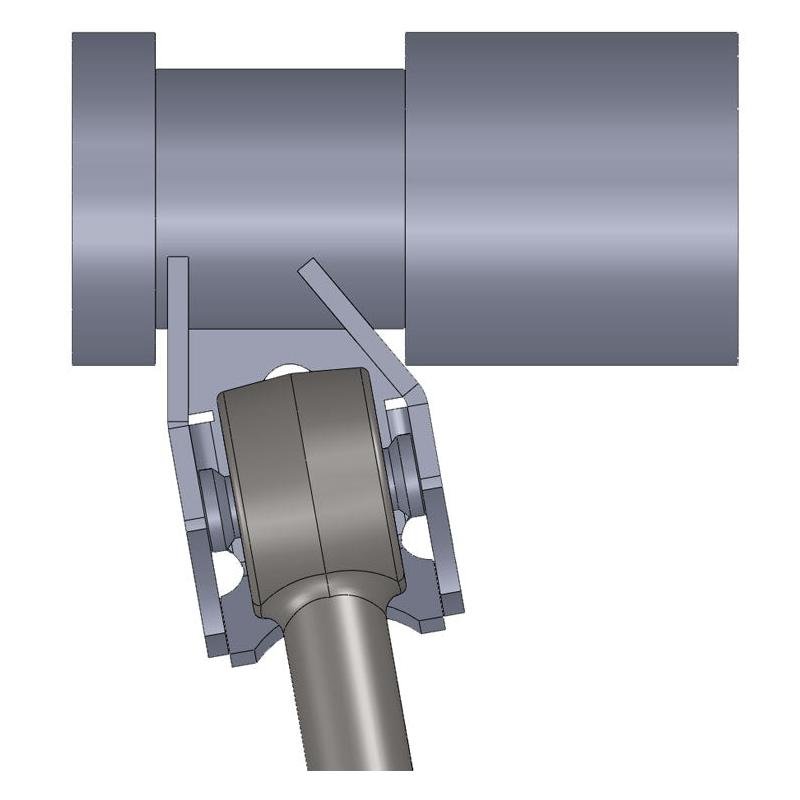

Place the  lower control arm mount on axle in desired position for your build and tack weld into place

( Some of these mounts are side specific, so ensure they angle towards the center of the vehicle 10/22 degree brackets only )

Optional : For greater ground clearance rotate up

Step 7:

Spray the LCA bracket with a self-etching primer and paint.

Step 8:

Reinstall the Lower Control Arm axle side first then  install the frame side of the arm,  Install the bolts and nuts finger tight at this time !

 Step 9 :

Repeat Steps 5-8 on the opposite side of the vehicle

 Step 10:

Install the wheels back on the vehicle and tighten the lug nuts (do not torque them yet)

 Step 11:

Use the jack to raise the Jeep off of the jack stands and remove them from under the vehicle Then lower the Jack .

 Step 12:

With the vehicle on the ground Torque the lug nuts to manufacturer spec

 Step 13:

Torque the Lower control arms If you have Aftermarket arms refer to the arm manufacturers specs (most adjustable arms will have a spec around 90ft lbs)

 Step 14

Check bolts  for tightness after 50miles or a few trips off-road (whichever occurs first)
